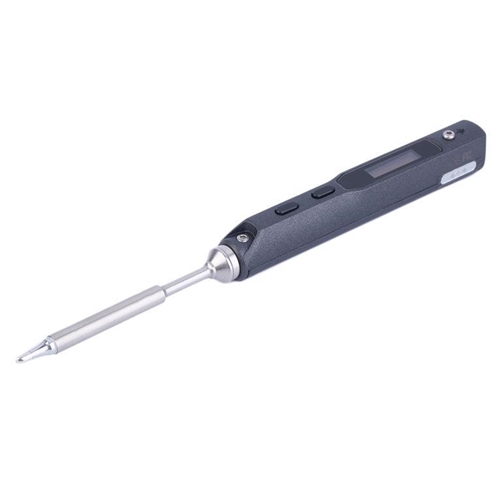

TS100 Portable Soldering Iron(B2)
TS100 Portable Soldering Iron(B2)

Alternative Views:


Map Price: $39.99

Stock Status:In Stock

Product Code: TS100
Qty:

Description


TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these functionalities, temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C, and the TS100 also has sleep mode and automatic over-heating warning.

MAIN PARAMETERES

  • Power - 65W
  • Temperature stability - ±2%
  • Soldering tip resistance to GND - <2Ω
  • Temperature Range - 100℃ - 400℃(max)
  • Max operation ambient temperature - 40°C
  • OLED screen
  • Micro USB port
  • DC5525 port

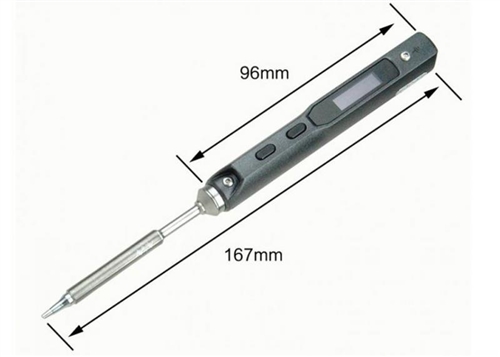

  • Control part: length 96mm, Diameter:16.5mm
  • Heating part: Length: 72+33mm, Diameter: 5.5mm
  • Weight: 33g (power adaptor not included)
  • Compliant with EU certification: CE FCC

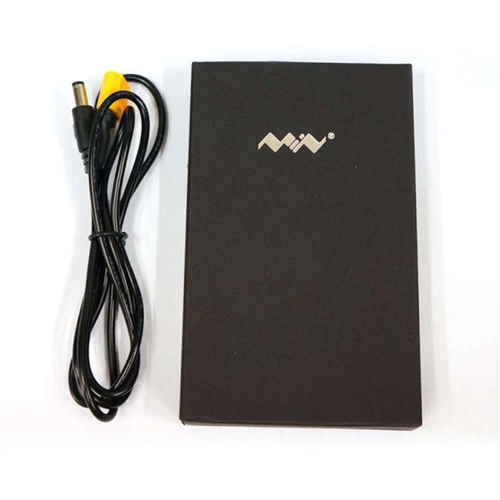

INCLUDES

  • 1 x TS100 Body
  • 1 x Tip
  • 1 x allen key
  • 2 x spare screws
  • Instructions Manual
  • FREE XT60 > DC power cable
